Comprehensive Digital Signage Solutions
Interactive Touch Panel
Ideal For: Classrooms, meeting rooms, museum exhibits, telemedicine stations, training rooms, lecture halls

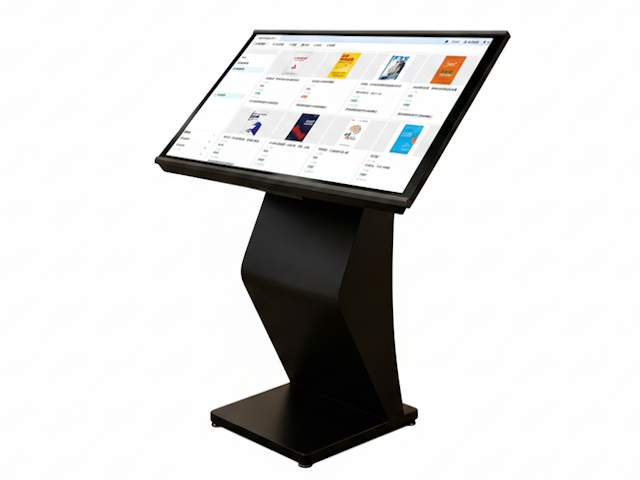

Interactive kiosk
Ideal For: Digital libraries, museum exhibits, mall directories, corporate showrooms, and self-service lobbies.

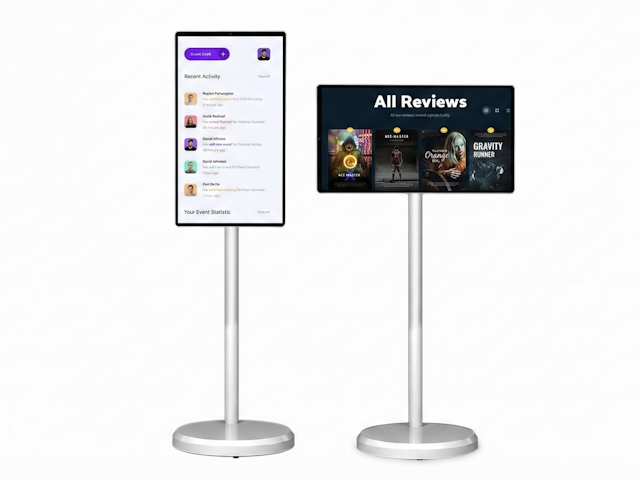

Mobile Smart Screen
Ideal For: Interactive gaming, live streaming setups, outdoor camping, home fitness，Music studios，Trade Show Booths
Why Choose Our Products
Technical Specifications
Screen Size Rangeadmin2026-02-04T19:56:53+08:00
- Wall-Mounted Display: 32″ / 43″ / 50″ / 55″ / 65″ / 75″ / 86″ / 98″
- LCD Bar Display: 19″ / 24″ / 28″ / 37″ / 48″ (Custom sizes available)
- Transparent Dual Signage: 30″ / 43″ / 55″
- Floor-Standing Kiosk: 43″ / 49″ / 55″ / 65″
- Video Wall Unit: 46″ / 49″ / 55″
- Digital Art Frame: 21.5″ / 32″ / 43″ / 55″
Display Performanceadmin2026-02-04T19:57:27+08:00
- Resolution: 3840 x 2160 (4K) for standard screens; Custom resolution for bar displays.
- Brightness (Typ.):
Standard Indoor: 350 – 500 nits
Window/Semi-outdoor: 700 – 2500 nits (Sunlight Readable) - Viewing Angle: 178°(H) / 178°(V) (IPS Panel)
- Contrast Ratio: 1200:1 to 4000:1 (Dynamic contrast up to 500,000:1)
- Life Span: ≥ 50,000 Hours
Touch Technology (Optional)admin2026-02-06T10:43:55+08:00
- Type: Capacitive (CAP) or Infrared (IR)
- Touch Points: 10-point / 20-point Multi-touch
- Surface Glass: 3mm/4mm Tempered Glass (Mohs Level 7) with Anti-Glare (AG) coating
Hardware & OSadmin2026-02-04T19:58:10+08:00
- Operating System: Android 11/12 or Windows 10/11 (OPS Module Optional)
- CPU (Android): Quad-core / Octa-core Processor (e.g., RK3568 / RK3588)
- RAM/ROM:
RAM: 1G/2G/4G (Optional)
ROM: 4G/8G/16G/32G (Optional) - Connectivity: Dual-band Wi-Fi (2.4G/5G), Gigabit Ethernet (RJ45), Optional 4G/5G Module
I/O Interfacesadmin2026-02-04T19:58:26+08:00
- Video Input: HDMI, DP, VGA
- Video Output: HDMI Out (Supports Daisy Chain)
- Data: USB 3.0 , USB 2.0, Type-C (Select models only)
- Network & Control: RJ45 LAN (Gigabit), RS232 (DB9 Serial Control)
- Audio: 3.5mm Audio In/Out, S/PDIF
- Expansion: TF/SD Card Slot (Storage), SIM Card Slot (4G/5G), OPS Slot (Windows ver. only)
Video Wall & Designadmin2026-02-04T19:58:42+08:00
- Bezel Width (Video Wall): 0.88mm / 1.7mm / 3.5mm (Bezel-to-Bezel)
- Enclosure Material: Aluminum Alloy Frame + Cold Rolled Steel Back
- Color: Black / Silver / White (Customizable)
